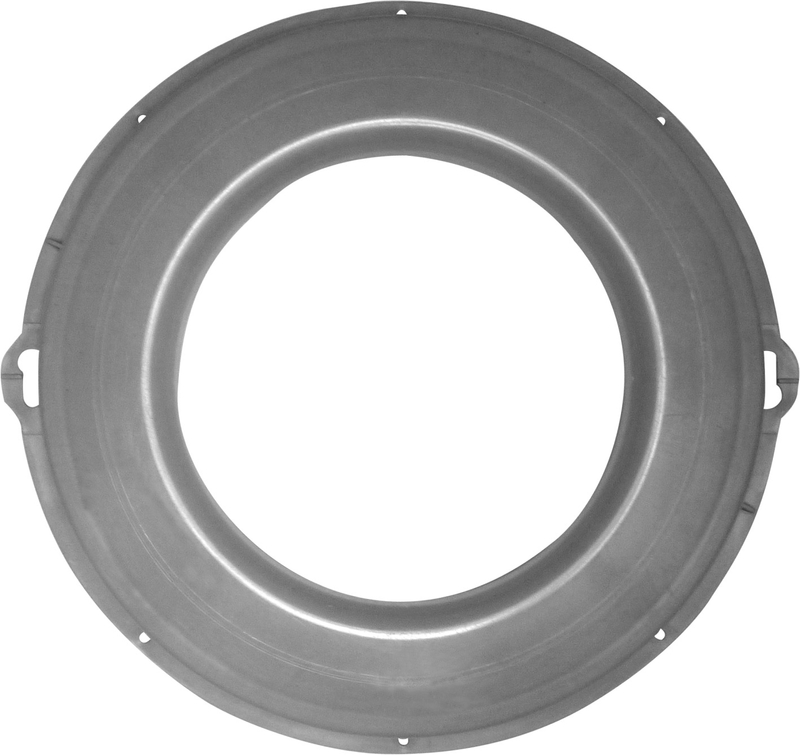

648-(A handle)

Quantity:
Inquire Add to Basket

648-(A handle)

Specifications : Inner edge 160mm x Outer 272mm

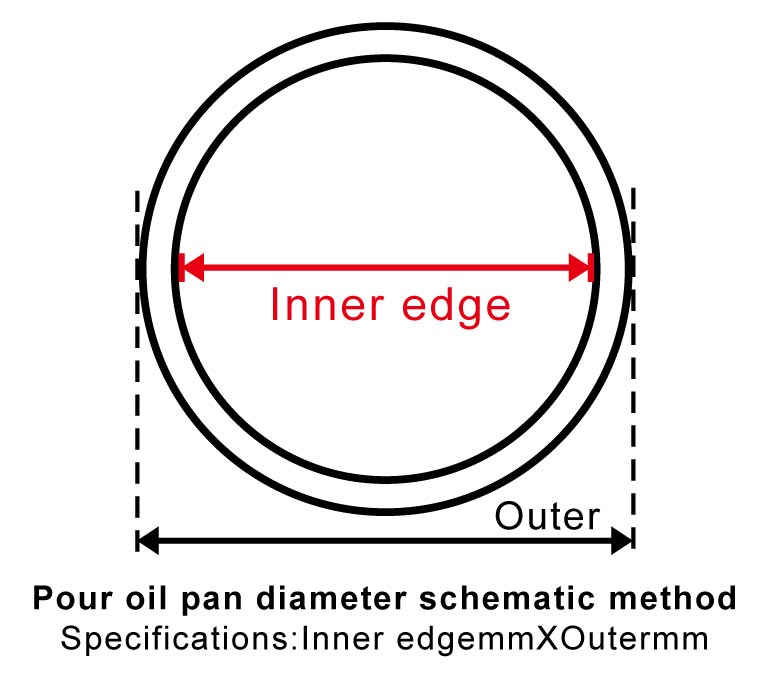

Method guide specifications described oil pan
1. Please guide oil pan flat on the desktop
2. Use the measurement tools measure (feet)
3. Measuring the inner edge of the oil pan when to turn around the inner edge of the maximum width as the base (as shown)
4. Measuring the outer edge of the oil pan when to turn around the outer edge of the maximum width as the base (as shown)
