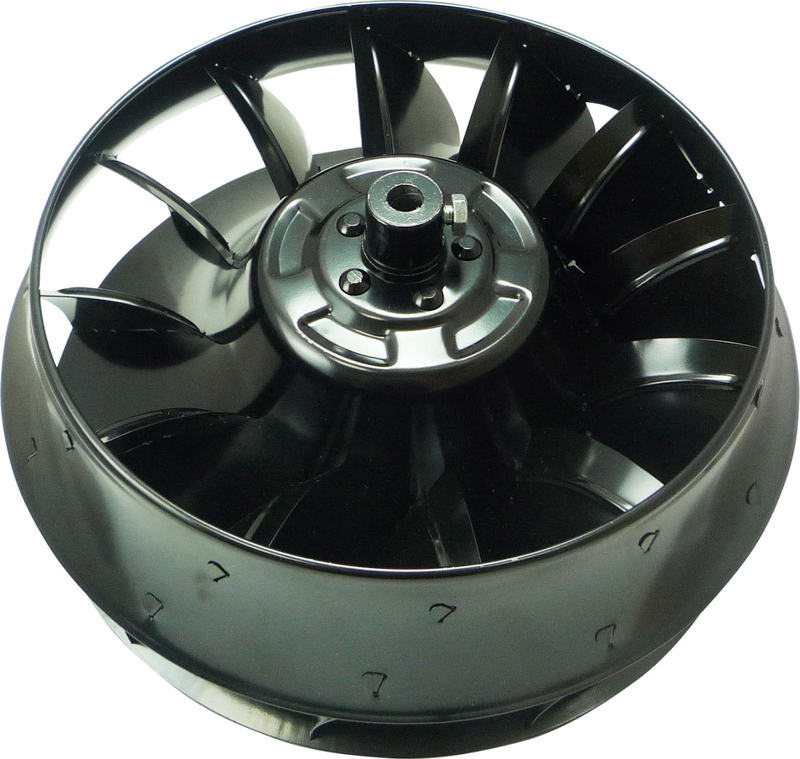

K241321
240 - Deep D / aluminum
Motor center height 90mm
Diameter: 235mm * Blade height: 79mm * Blades: 16
K242321
240 - Deep D / aluminum
Motor center height 93mm
Diameter: 239mm * Blade height: 79mm * Blades: 16
K241322
240 - Deep L / aluminum
Motor center height 90mm
Diameter: 235mm * Blade height: 79mm * Blades: 16
K242322
240 - Deep L / aluminum
Motor center height 93mm
Diameter: 239mm * Blade height: 79mm * Blades: 16

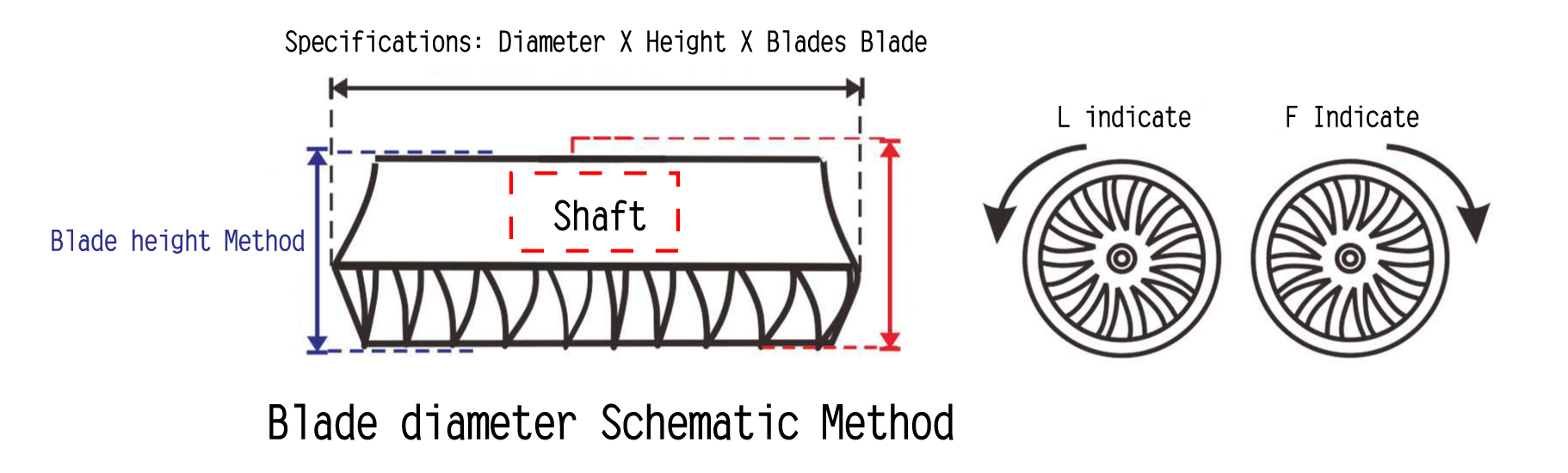

Blade Specification Method Description
1 Please blade flat on the desktop
2 Use the measurement tools measure (feet)
3 Measure the diameter about when to fan the maximum width as the base (as shown)
4 measuring motor center height to blade when the bottom to the top of the can (including the axis as shown)
5 Measuring height blades can with the fan at the bottom (as shown)
