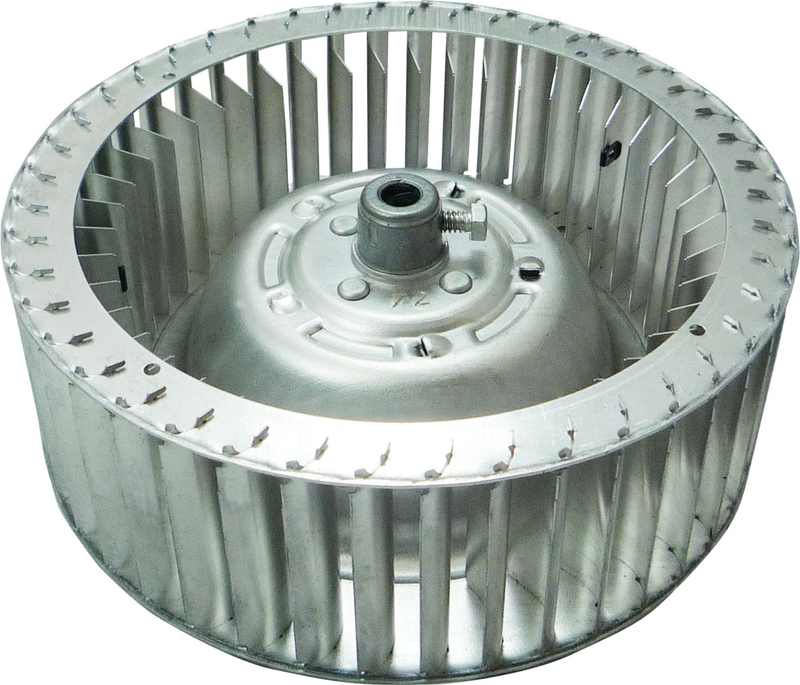

190 - air conditioning fan (inside dimensions)

Quantity:
Inquire Add to Basket

  • K241581

Diameter: 190mm * Blade height: 70mm * Blades: 44
Motor center height 70mm

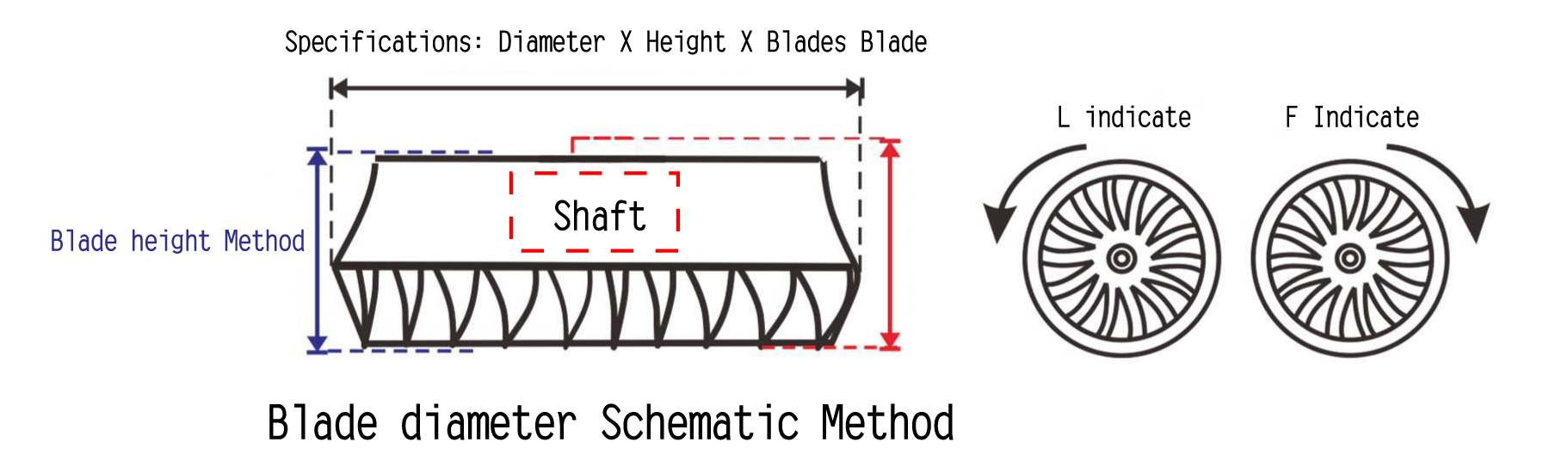

Blade Specification Method Description:

1 Please blade flat on the desktop
2 Use the measurement tools measure (feet)
3 Measure the diameter about when to fan the maximum width as the base (as shown)
4 measuring motor center height to blade when the bottom to the top of the can (including the axis as shown)
5 Measuring height blades can with the fan at the bottom (as shown)
